Truck Mounted Reclaimers
RC2-T (Slide In)
The Ray-Tech RC2-T a 2 ton capacity reclaimer designed to slide into a dump truck body or onto a flatbed. Comes standard as propane fueled – Diesel option available.
The RC2-T is a 2 ton capacity reclaimer designed to slide into the body of a dump truck or onto a flatbed. There are two manual shovel doors on the rear of the unit and two manual top loading doors.
This model can be designed to bolt down to the deck of your truck for a permanent installation or to be removed when switching between implements.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
Comes standard as propane fueled – Diesel option available.
- Hydraulic Dump – Electric pump and single piston to dump to rear of unit.
- Hydraulic Doors – Hydraulic operation for top loading and shovel doors.
- Diesel Fueled – Change fuel type from propane to diesel – Must make this change prior to starting build.
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black)
- Two 37,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Two 100 LB propane cylinders mounted on front.
- Two manually operated shovel doors at rear of unit.
- Two manually operated top loading doors that form a chute.
- LED Work Light.
- LED Arrow Board.
- 12 volt system powered by battery and charger.
- Sloped hopper walls to steer asphalt down and out to the shovel doors.
- Time delay system (TDS) to automatically turn on reclaimer at preset time.
Dimensions may vary slightly if adding options.
• Length: 7′ 8″
• Width: 5′ 2″
• Height: 5′ 2″
• Weight (Empty): 2,000 lbs
• Weight (w/ Propane & Asphalt): 6,200 lbs
RC4-T (Slide In)
The Ray-Tech RC4-T a 4 ton capacity reclaimer designed to slide into a dump truck body or onto a flatbed. Comes standard as propane fueled – Diesel option available.
The RC4-T is a 4 ton capacity reclaimer designed to slide into the body of a dump truck or onto a flatbed. There are three manual shovel doors on the rear of the unit and two manual top loading doors.
This model can be designed to bolt down to the deck of your truck for a permanent installation or to be removed when switching between implements.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
Comes standard as propane fueled – Diesel option available.
- Hydraulic Dump – Electric pump and single piston to dump to rear of unit.
- Hydraulic Doors – Hydraulic operation for top loading and shovel doors.
- Diesel Fueled – Change fuel type from propane to diesel – Must make this change prior to starting build.
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black)
- Two 50,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Two 100 LB propane cylinders mounted on front.
- Three manually operated shovel doors at rear of unit.
- Two manually operated top loading doors that form a chute.
- LED Work Light.
- LED Arrow Board.
- 12 volt system powered by battery and charger.
- Sloped hopper walls to steer asphalt down and out to the shovel doors.
- Time delay system (TDS) to automatically turn on reclaimer at preset time.
Dimensions may vary slightly if adding options.
• Length: 8′ 11″
• Width: 5′ 9″
• Height: 6′ 2″
• Weight (Empty): 3,560 lbs
• Weight (w/ Propane & Asphalt): 11,760 lbs
RC4-T (Roll Off)
The Ray-Tech RC4-T is a 4 ton capacity reclaimer built on a hook lift frame. Comes standard as propane fueled – Diesel option available.
The RC4-T is a 4 ton capacity reclaimer built on a hook lift frame. There are three manual shovel doors on the rear of the unit and two manual top loading doors.
This model was developed to give you the ability to quickly and easily switch between different implements without tying up a truck permanently.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
Comes standard as propane fueled – Diesel option available.
- Hydraulic Dump – Electric pump and single piston to dump to rear of unit.
- Hydraulic Doors – Hydraulic operation for top loading and shovel doors.
- Diesel Fueled – Change fuel type from propane to diesel – Must make this change prior to starting build.
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black)
- Two 50,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Two 100 LB propane cylinders mounted on front.
- Three manually operated shovel doors at rear of unit.
- Two manually operated top loading doors that form a chute.
- LED Work Light.
- LED Arrow Board.
- 12 volt system powered by battery and charger.
- Sloped hopper walls to steer asphalt down and out to the shovel doors.
- Time delay system (TDS) to automatically turn on reclaimer at preset time.
Dimensions may vary slightly if adding options.
*Does not include hook lift frame weight/length*
• Length: 8′ 11″
• Width: 5′ 9″
• Height: 6′ 2″
• Weight (Empty): 3,560 lbs
• Weight (w/ Propane & Asphalt): 11,760 lbs
RC6-T
The Ray-Tech RC6-T is a 6 ton capacity reclaimer configured to mount on a truck chassis with a hydraulic hoist to dump asphalt to the rear. Hydraulic bi-fold top loading doors make loading easy at the plant or from stockpiled material.
The RC6-T is a 6 ton capacity reclaimer designed to mount on a truck chassis. There are three hydraulically operated shovel doors on the rear of the unit and four 100 LB propane cylinders in front of the box.
Two Mounting Options:
- Ray-Tech can mount the hydraulic hoist at our location in Charlestown, New Hampshire
- Customer can arrange to have hoist installation performed near their location and Ray-Tech can ship the reclaimer on a flatbed to the customer or hoist install location.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
- Additional Reclaimer – Add a 2, 3, 4 or 6 ton reclaimer behind the cab to carry additional material.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board.
- Pro Package – Roller Elevator / Cone Storage / Hand Torch / Tool Tray / Water Tank.
- Storage Box Package – Sprayer Storage Box / Emulsion Storage Box / Sand Box / Side Dump Waste Box.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard colors are Ray-Tech Safety Lime Green or Black).
- Four 37,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Four 100 LB propane cylinders mounted securely on front.
- Heavy duty sub frame and cross members.
- Three hydraulically operated discharge doors at rear of unit.
- Two hydraulically operated bi-fold top loading doors that form a chute.
- LED lighting throughout.
- 12 volt system throughout, powered by truck 12 volt battery.
- Sloped hopper walls to steer asphalt down and out to the discharge doors.
- Catwalk with access ladder at front of box.
Reclaimer Only
(Truck and options not included)
• Length: 10′ 3″
• Width: 8′ 0″
• Height: 6′ 11″
• Weight (Empty): 5,700 lbs
• Weight (w/ Asphalt & Propane): 18,060 lbs
RC8-T
The Ray-Tech RC8-T is an 8 ton capacity reclaimer configured to mount on a truck chassis with a hydraulic hoist to dump asphalt to the rear. Hydraulic bi-fold top loading doors make loading easy at the plant or from stockpiled material.
The RC8-T is an 8 ton capacity reclaimer designed to mount on a truck chassis. There are three hydraulically operated shovel doors on the rear of the unit and four 100 LB propane cylinders in front of the box.
Two Mounting Options:
- Ray-Tech can mount the hydraulic hoist at our location in Charlestown, New Hampshire
- Customer can arrange to have hoist installation performed near their location and Ray-Tech can ship the reclaimer on a flatbed to the customer or hoist install location.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
- Additional Reclaimer – Add a 2, 3, 4 or 6 ton reclaimer behind the cab to carry additional material.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board.
- Pro Package – Roller Elevator / Cone Storage / Hand Torch / Tool Tray / Water Tank.
- Storage Box Package – Sprayer Storage Box / Emulsion Storage Box / Sand Box / Side Dump Waste Box.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard colors are Ray-Tech Safety Lime Green or Black).
- Four 50,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Four 100 LB propane cylinders mounted securely on front.
- Heavy duty sub frame and cross members.
- Three hydraulically operated discharge doors at rear of unit.
- Two hydraulically operated bi-fold top loading doors that form a chute.
- LED lighting throughout.
- 12 volt system throughout, powered by truck 12 volt battery.
- Sloped hopper walls to steer asphalt down and out to the discharge doors.
- Catwalk with access ladder at front of box.
Reclaimer Only
(Truck and options not included)
• Length: 12′ 3″
• Width: 8′ 0″
• Height: 6′ 11″
• Weight (Empty): 7,475 lbs
• Weight (w/ Asphalt & Propane): 23,835 lbs
RC10-T
The Ray-Tech RC10-T is a 10 ton capacity reclaimer configured to mount on a truck chassis with a hydraulic hoist to dump asphalt to the rear. Hydraulic bi-fold top loading doors make loading easy at the plant or from stockpiled material.
The RC10-T is a 10 ton capacity reclaimer designed to mount on a truck chassis. There are three hydraulically operated shovel doors on the rear of the unit and four 100 LB propane cylinders in front of the box.
Two Mounting Options:
- Ray-Tech can mount the hydraulic hoist at our location in Charlestown, New Hampshire
- Customer can arrange to have hoist installation performed near their location and Ray-Tech can ship the reclaimer on a flatbed to the customer or hoist install location.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
- Additional Reclaimer – Add a 2, 3, 4 or 6 ton reclaimer behind the cab to carry additional material.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board.
- Pro Package – Roller Elevator / Cone Storage / Hand Torch / Tool Tray / Water Tank.
- Storage Box Package – Sprayer Storage Box / Emulsion Storage Box / Sand Box / Side Dump Waste Box.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard colors are Ray-Tech Safety Lime Green or Black).
- Four 50,000 BTU and two 25,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Four 100 LB propane cylinders mounted securely on front.
- Heavy duty sub frame and cross members.
- Three hydraulically operated discharge doors at rear of unit.
- Two hydraulically operated bi-fold top loading doors that form a chute.
- LED lighting throughout.
- 12 volt system throughout, powered by truck 12 volt battery.
- Sloped hopper walls to steer asphalt down and out to the discharge doors.
- Catwalk with access ladder at front of box.
Reclaimer Only
(Truck and options not included)
• Length: 14′ 3″
• Width: 8′ 0″
• Height: 6′ 11″
• Weight (Empty): 8,425 lbs
• Weight (w/ Asphalt & Propane): 28,785 lbs
RC12-T
The Ray-Tech RC12-T is a 12 ton capacity reclaimer configured to mount on a truck chassis with a hydraulic hoist to dump asphalt to the rear. Hydraulic bi-fold top loading doors make loading easy at the plant or from stockpiled material.
The RC12-T is a 12 ton capacity reclaimer designed to mount on a truck chassis. There are three hydraulically operated shovel doors on the rear of the unit and four 100 LB propane cylinders in front of the box.
Two Mounting Options:
- Ray-Tech can mount the hydraulic hoist at our location in Charlestown, New Hampshire
- Customer can arrange to have hoist installation performed near their location and Ray-Tech can ship the reclaimer on a flatbed to the customer or hoist install location.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
- Additional Reclaimer – Add a 2, 3, 4 or 6 ton reclaimer behind the cab to carry additional material.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board.
- Pro Package – Roller Elevator / Cone Storage / Hand Torch / Tool Tray / Water Tank.
- Storage Box Package – Sprayer Storage Box / Emulsion Storage Box / Sand Box / Side Dump Waste Box.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard colors are Ray-Tech Safety Lime Green or Black).
- Four 50,000 BTU and four 37,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.
- Four 100 LB propane cylinders mounted securely on front.
- Heavy duty sub frame and cross members.
- Three hydraulically operated discharge doors at rear of unit.
- Two hydraulically operated bi-fold top loading doors that form a chute.
- LED lighting throughout.
- 12 volt system throughout, powered by truck 12 volt battery.
- Sloped hopper walls to steer asphalt down and out to the discharge doors.
- Catwalk with access ladder at front of box.
Reclaimer Only
(Truck and options not included)
• Length: 16′ 5″
• Width: 8′ 0″
• Height: 6′ 11″
• Weight (Empty): 9,555 lbs
• Weight (w/ Asphalt & Propane): 33,915 lbs
RC15-T
The Ray-Tech RC15-T is our largest truck mount reclaimer. It features a 15 ton capacity reclaimer configured to mount on a truck chassis with a hydraulic hoist to dump asphalt to the rear. Hydraulic bi-fold top loading doors make loading easy at the plant or from stockpiled material.
The RC15-T is a 15 ton capacity reclaimer designed to mount on a truck chassis. There are three hydraulically operated shovel doors on the rear of the unit and four 100 LB propane cylinders in front of the box.
Two Mounting Options:
- Ray-Tech can mount the hydraulic hoist at our location in Charlestown, New Hampshire
- Customer can arrange to have hoist installation performed near their location and Ray-Tech can ship the reclaimer on a flatbed to the customer or hoist install location.
This unit is capable of holding hot mix asphalt at a workable temperature for 48 hours without damage to the material. It is also capable of reclaiming cold asphalt to a working temperature in 12 hours.
- Additional Reclaimer – Add a 2, 3, 4 or 6 ton reclaimer behind the cab to carry additional material.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board.
- Pro Package – Roller Elevator / Cone Storage / Hand Torch / Tool Tray / Water Tank.
- Storage Box Package – Sprayer Storage Box / Emulsion Storage Box / Sand Box / Side Dump Waste Box.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard colors are Ray-Tech Safety Lime Green or Black).
- Eight 50,000 BTU burners located under hopper.
- Fully automatic ignition with the flip of a switch.
- Timers and thermostats for reclaiming and holding operation.

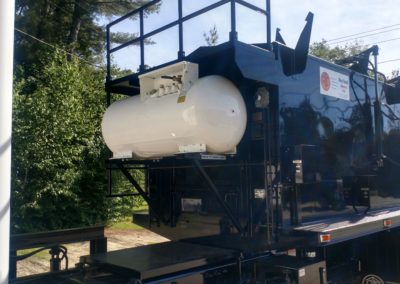

- Four 100 LB propane cylinders mounted securely on front.
- Heavy duty sub frame and cross members.

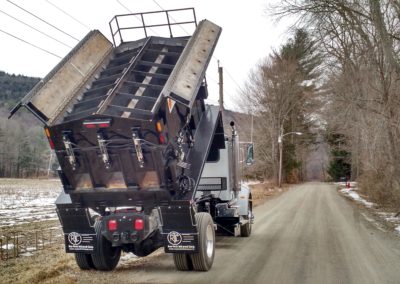

- Three hydraulically operated discharge doors at rear of unit.
- Two hydraulically operated bi-fold top loading doors that form a chute.
- LED lighting throughout.
- 12 volt system throughout, powered by truck 12 volt battery.
- Sloped hopper walls to steer asphalt down and out to the discharge doors.
- Catwalk with access ladder at front of box.
Reclaimer Only
(Truck and options not included)
• Length: 19′ 8″
• Width: 8′ 0″
• Height: 6′ 11″
• Weight (Empty): 11,250 lbs
• Weight (w/ Asphalt & Propane): 41,610 lbs
Founded with the mission to deliver the highest quality infrared asphalt equipment, Ray-Tech has set the industry standard for durability, efficiency, and performance. Our machines are built to withstand tough conditions and deliver long-lasting results that contractors and municipalities can rely on.
When you need proven performance, choose Ray-Tech.
© 2025 Ray-Tech Infrared. All rights reserved. Website created by Adam Boureima.
Contacts
Ray-Tech Infrared
PO Box 1119
198 Springfield Road
Charlestown, NH 03603
📞 (603) 826-3030
📧 sales@raytechinfrared.com
