Tow Behind Joint Heaters

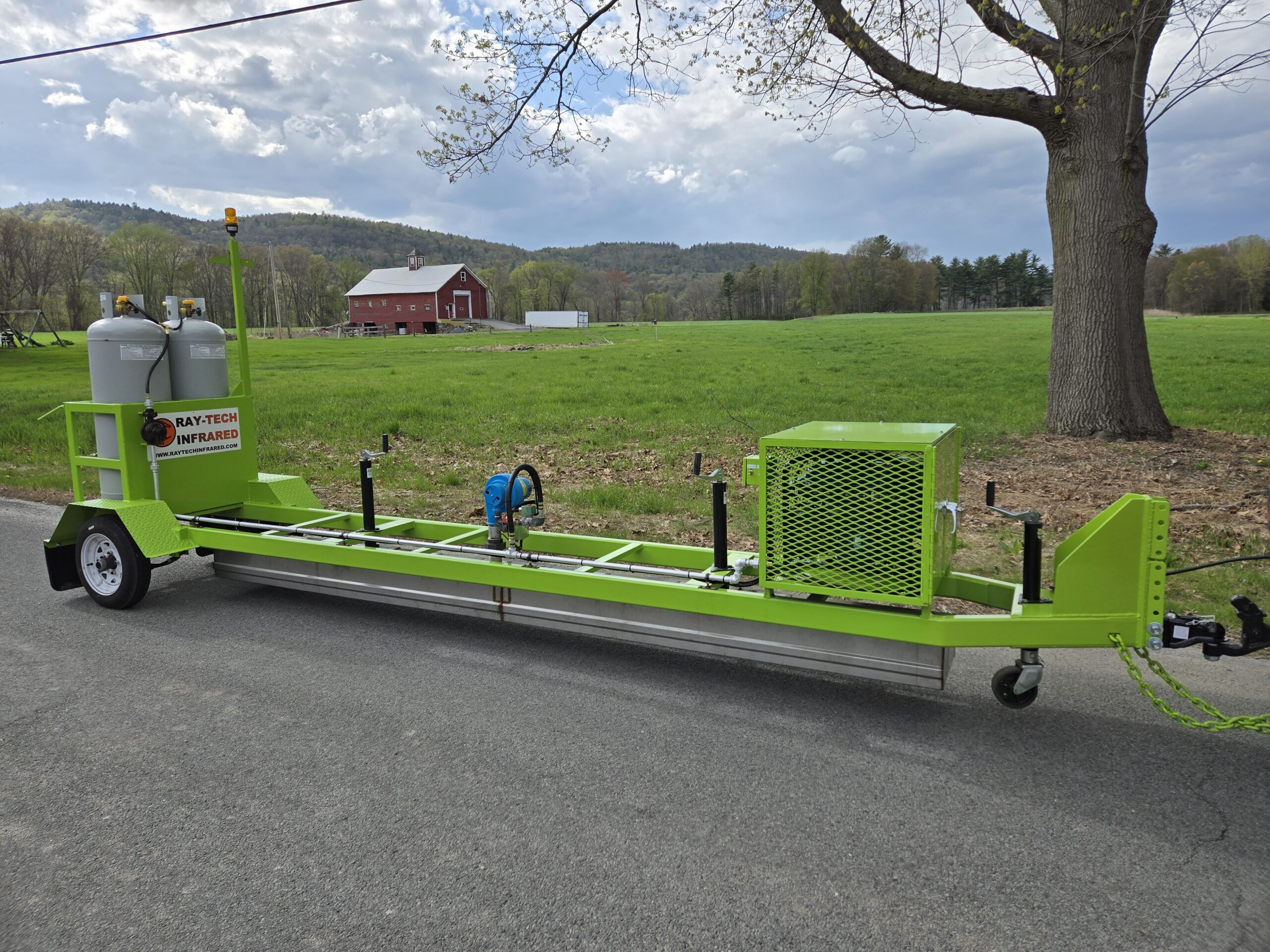

Fusion MT (Manual Tow)
The Ray-Tech Fusion MT is a trailer mounted joint heating unit featuring a 15″W x 12’L heating chamber. This is our only joint heating model that can be registered and towed down the road.
The Fusion MT features a 15″W x 12’L heating chamber mounted on a trailer frame with a single rear axle. The trailer can be registered for road use and is ideal for any size paving job from parking lots to airports and highways. There is a rear ball hitch that can allow for more than one Fusion MT to be towed in tandem on the jobsite.
No Options Available
- One 115V blower motor.
- Easy manual ignition with a customer supplied hand held torch.
- Propane fueled generator mounted on frame to supply power.
- Completely stainless steel heating chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Two 100 lb propane cylinders in rear latching rack.
- Heavy duty steel tubing frame.
- Flashing LED beacon light on rear.
- Single 2,000 lb axle.
- LED trailer lighting throughout.
- Front swivel caster wheel on jack.
- Adjustable jacks to control height of heater.
- Length: 18’ 6″
- Width: 48″
- Height: 6′ 0”
- Chamber Length: 12′ 0″
- Chamber Width: 15″
- Weight (Empty): 1,200 lbs
- Weight (GVW): 1,400 lbs
Fusion AT (Automatic Tow)
The Ray-Tech Fusion AT is a trailer mounted joint heating unit featuring a 15″W x 12’L heating chamber. This is our only joint heating model that can be registered and towed down the road.
The Fusion AT features a 15″W x 12’L heating chamber mounted on a trailer frame with a single rear axle. The trailer can be registered for road use and is ideal for any size paving job from parking lots to airports and highways. There is a rear ball hitch that can allow for more than one Fusion AT to be towed in tandem on the jobsite.
No Options Available
- One 115V blower motor.
- Fully automatic ignition and heat sensing.
- Propane fueled generator mounted on frame to supply power.
- Completely stainless steel heating chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Two 100 lb propane cylinders in rear latching rack.
- Heavy duty steel tubing frame.
- Flashing LED beacon light on rear.
- Single 2,000 lb axle.
- LED trailer lighting throughout.
- Front swivel caster wheel on jack.
- Adjustable jacks to control height of heater.
- Length: 18’ 6″
- Width: 48″
- Height: 6′ 0”
- Chamber Length: 12′ 0″
- Chamber Width: 15″
- Weight (Empty): 1,200 lbs
- Weight (GVW): 1,400 lbs
Founded with the mission to deliver the highest quality infrared asphalt equipment, Ray-Tech has set the industry standard for durability, efficiency, and performance. Our machines are built to withstand tough conditions and deliver long-lasting results that contractors and municipalities can rely on.
When you need proven performance, choose Ray-Tech.
