Total Maintenance Vehicles (TMV)
TMV 2

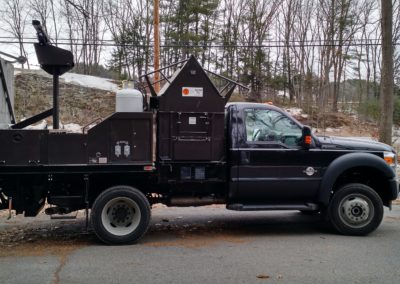

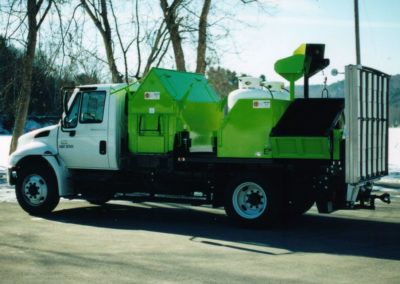

The Ray-Tech TMV 2 is the smallest of our line of truck mounted combos. It consists of a 2 ton reclaimer and a 6’L x 8’W heating chamber. It can be mounted on a variety of chassis as small as a class 5 (ie F550). This model TMV also keeps you under CDL requirements as long as the truck GVW does not exceed 26,000 LBS.
The TMV 2 features a 6’L x 8’W infrared heating chamber mounted on the rear of a customer supplied truck chassis and a 2 ton reclaimer mounted behind the truck cab. Our TMV models are completely self-contained and are a great addition for any size company.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board / Backup Camera.
- Pro Package – Tool Tray / Wind Guards / Water Tank.
- Truck Upgrade Package – Trailer Hitch / Cross Cab Toolbox.
- Hydraulics Package – Fully Hydraulic Operation For: Top Doors / Discharge Doors / Chamber Lift / Side Dump.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black).
- Two 24V brushless blower motors.
- Easy manual ignition with a customer supplied hand held torch.
- Completely stainless steel heating chamber.
- Heavy duty electric winch to raise and lower chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Five 100 lb propane cylinders on deck (under CDL HAZMAT certification threshold)
- 2 ton reclaimer.
- Two manual top loading doors on reclaimer.
- Two manual shovel doors; one on each side of reclaimer.
- Battery system and backup charging system on deck.
- 12V to 24V power converter to charge batteries off truck when running.
- Roller or compactor compartment on deck with heavy duty winch on swivel boom.
- Side dump waste bin with winch.
Ray-Tech Standard TMV 2 Equipment Only
(Back of Cab to End of Equipment – Truck cab not included)
- Length: 14’ 2″
- Width: 8′ 0″
- Height: 8′ 5″
- Chamber Length: 6’L
- Chamber Width: 8’W
- Weight (Empty): 5,700 lbs
- Weight (w/ Asphalt, Propane, Tools): 10,200 lbs
Please keep in mind these dimensions may vary with options or truck chassis obstructions.
TMV 3

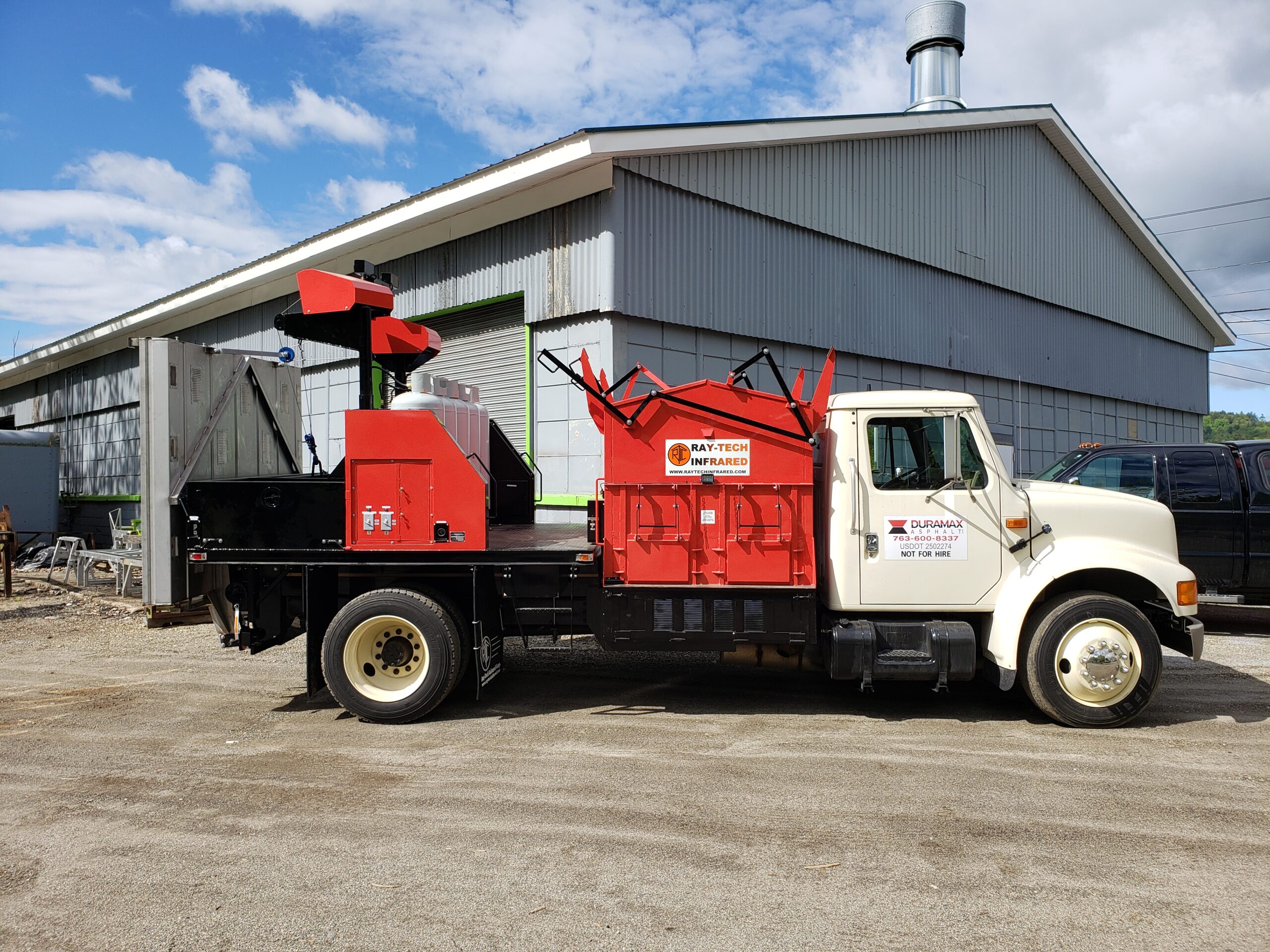

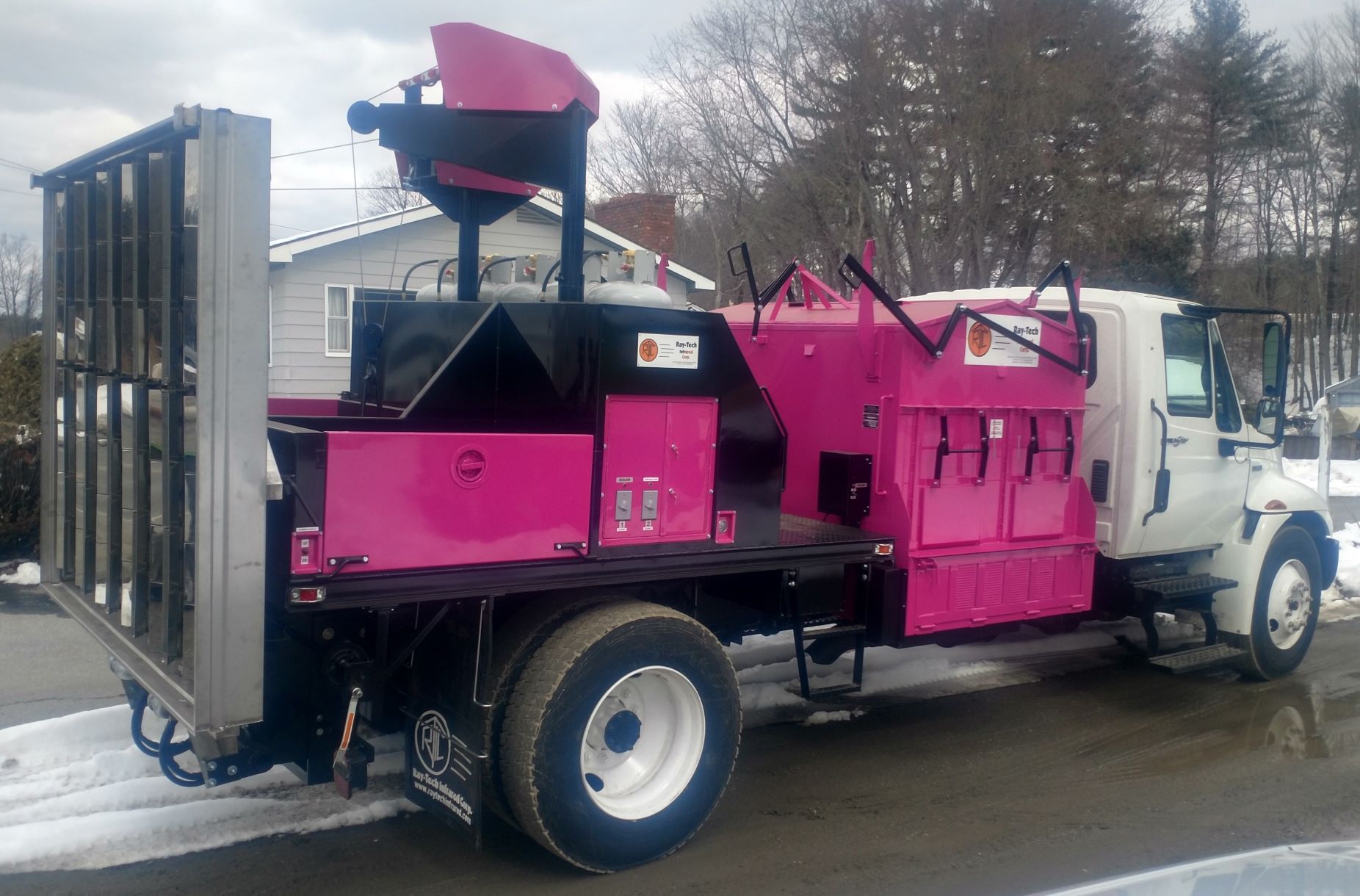

The Ray-Tech TMV 3 consists of a 3 ton reclaimer and a 6’L x 8’W heating chamber. It can be mounted on a variety of chassis as small as a class 6 (ie F600). This model TMV also keeps you under CDL requirements as long as the truck GVW does not exceed 26,000 LBS.
The TMV 3 features a 6’L x 8’W infrared heating chamber mounted on the rear of a customer supplied truck chassis and a 3 ton reclaimer mounted behind the truck cab. Our TMV models are completely self-contained and are a great addition for any size company.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board / Backup Camera.
- Pro Package – Tool Tray / Wind Guards / Water Tank.
- Truck Upgrade Package – Trailer Hitch / Cross Cab Toolbox. *Cross Cab Toolbox may not fit on some F550/F600 models with the TMV 3
- Hydraulics Package – Fully Hydraulic Operation For: Top Doors / Discharge Doors / Chamber Lift / Side Dump.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black).
- Two 24V brushless blower motors.
- Easy manual ignition with a customer supplied hand held torch.
- Completely stainless steel heating chamber.
- Heavy duty electric winch to raise and lower chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Five 100 lb propane cylinders on deck (under CDL HAZMAT certification threshold)
- 3 ton reclaimer.
- Two manual top loading doors on reclaimer.
- Four manual shovel doors; two on each side of reclaimer.
- Battery system and backup charging system on deck.
- 12V to 24V power converter to charge batteries off truck when running.
- Roller or compactor compartment on deck with heavy duty winch on swivel boom.
- Side dump waste bin with winch.
Ray-Tech Standard TMV 3 Equipment Only
(Back of Cab to End of Equipment – Truck cab not included)
- Length: 15’ 9″
- Width: 8′ 0″
- Height: 8′ 5″
- Chamber Length: 6’L
- Chamber Width: 8’W
- Weight (Empty): 6,650 lbs
- Weight (w/ Asphalt, Propane, Tools): 13,150 lbs
Please keep in mind these dimensions may vary with options or truck chassis obstructions.

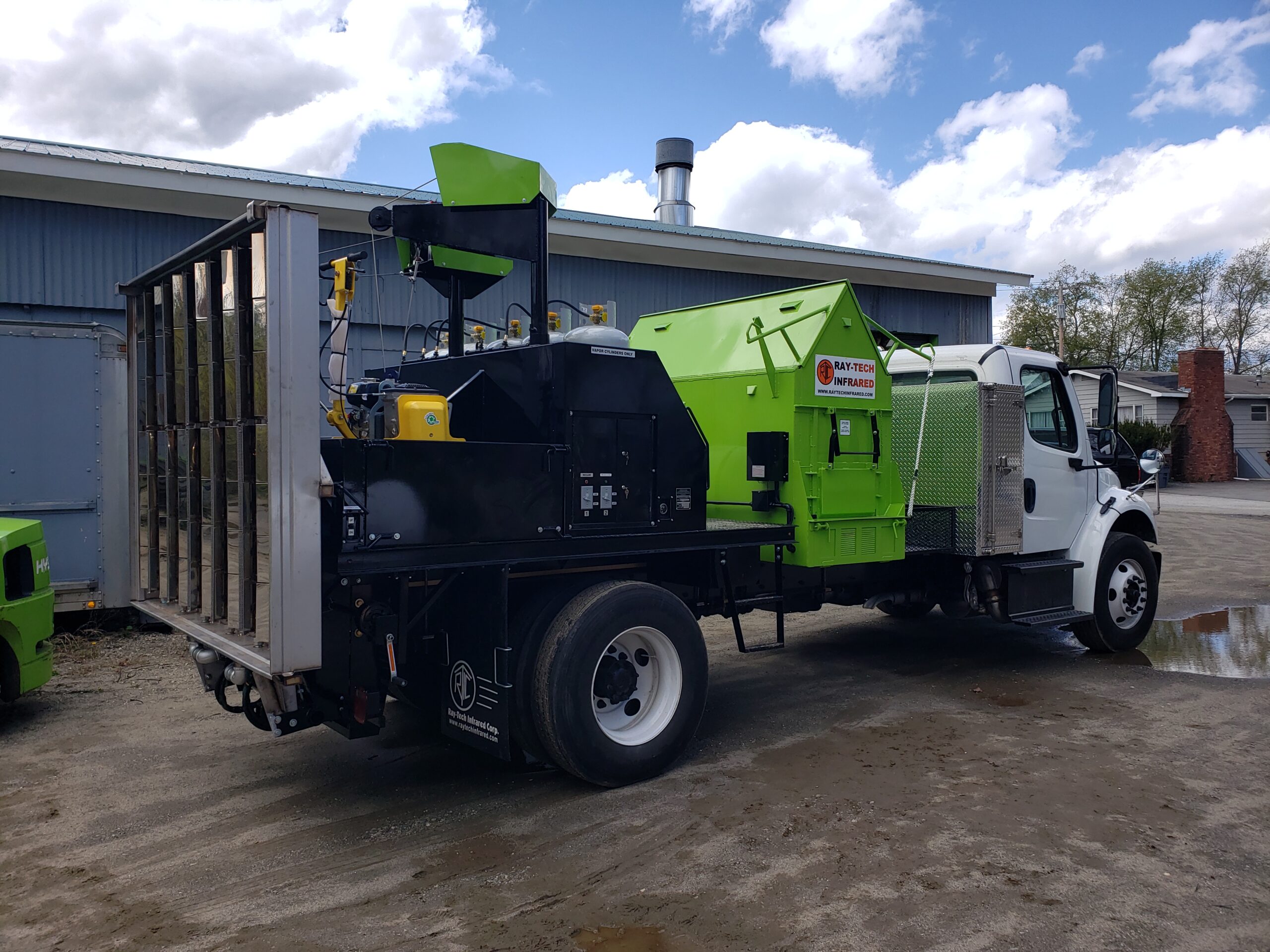

The TMV 4 features a 6’L x 8’W infrared heating chamber mounted on the rear of a customer supplied truck chassis and a 4 ton reclaimer mounted behind the truck cab. Our TMV models are completely self-contained and are a great addition for any size company.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board / Backup Camera.
- Pro Package – Tool Tray / Wind Guards / Water Tank.
- Truck Upgrade Package – Trailer Hitch / Cross Cab Toolbox.
- Hydraulics Package – Fully Hydraulic Operation For: Top Doors / Discharge Doors / Chamber Lift / Side Dump.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black).
- Two 24V brushless blower motors.
- Easy manual ignition with a customer supplied hand held torch.
- Completely stainless steel heating chamber.
- Heavy duty electric winch to raise and lower chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Five 100 lb propane cylinders on deck (under CDL HAZMAT certification threshold)
- 4 ton reclaimer.
- Two manual top loading doors on reclaimer.
- Four manual shovel doors; two on each side of reclaimer.
- Battery system and backup charging system on deck.
- 12V to 24V power converter to charge batteries off truck when running.
- Roller or compactor compartment on deck with heavy duty winch on swivel boom.
- Side dump waste bin with winch.
Ray-Tech Standard TMV 4 Equipment Only
(Back of Cab to End of Equipment – Truck cab not included)
- Length: 15’ 9″
- Width: 8′ 0″
- Height: 8′ 5″
- Chamber Length: 6’L
- Chamber Width: 8’W
- Weight (Empty): 8,250 lbs
- Weight (w/ Asphalt, Propane, Tools): 16,750 lbs
Please keep in mind these dimensions may vary with options or truck chassis obstructions.
TMV 6

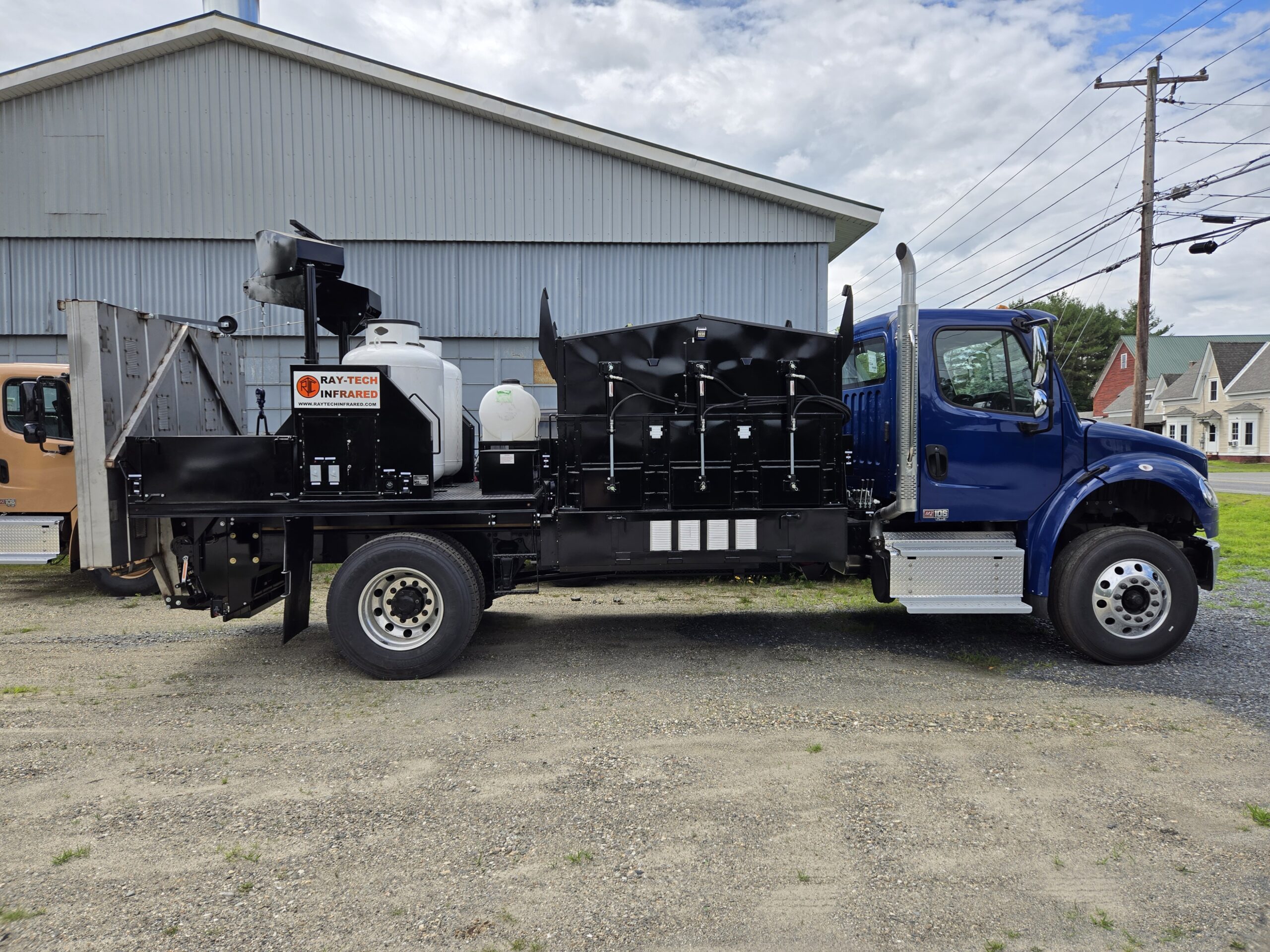

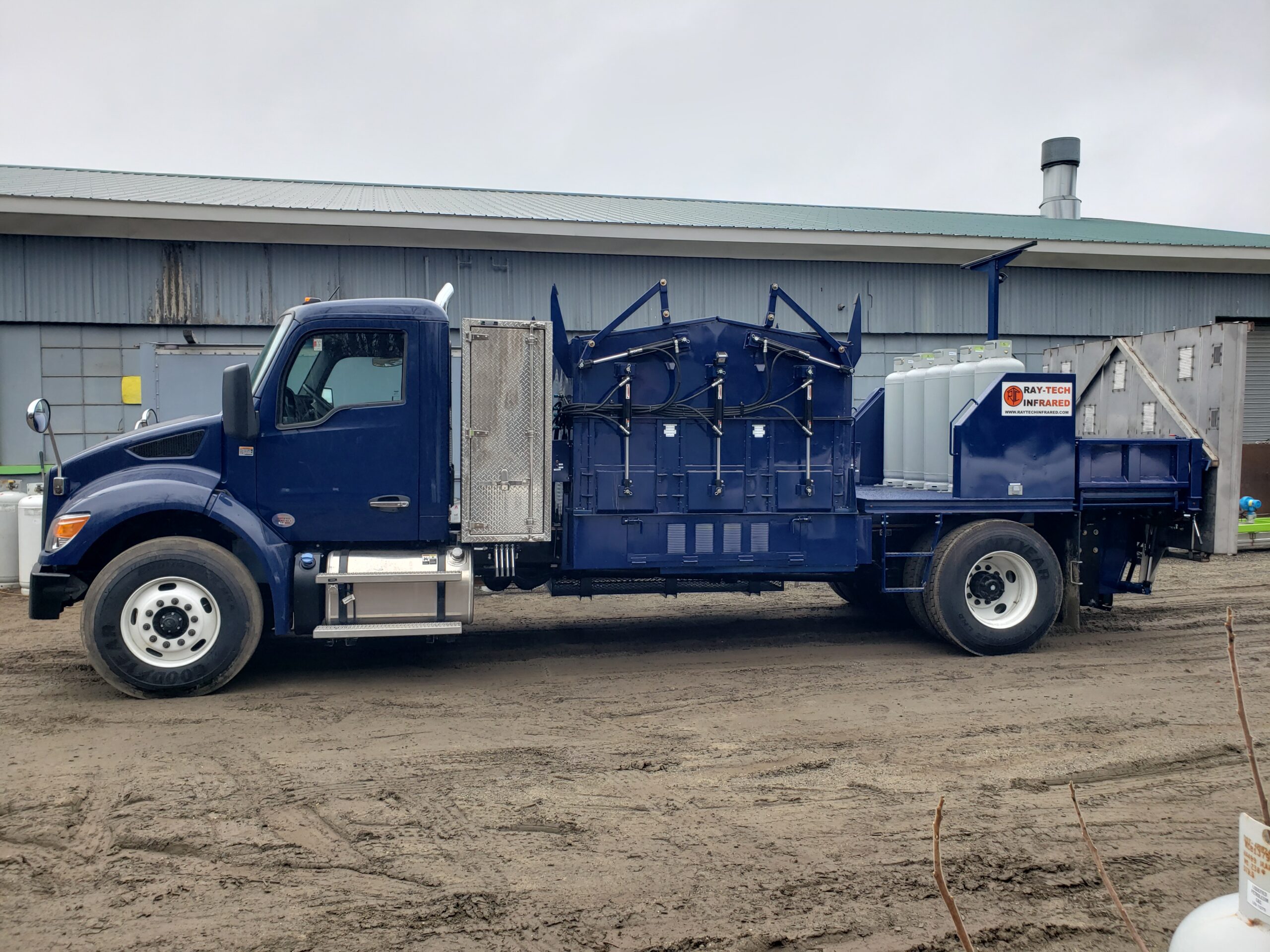

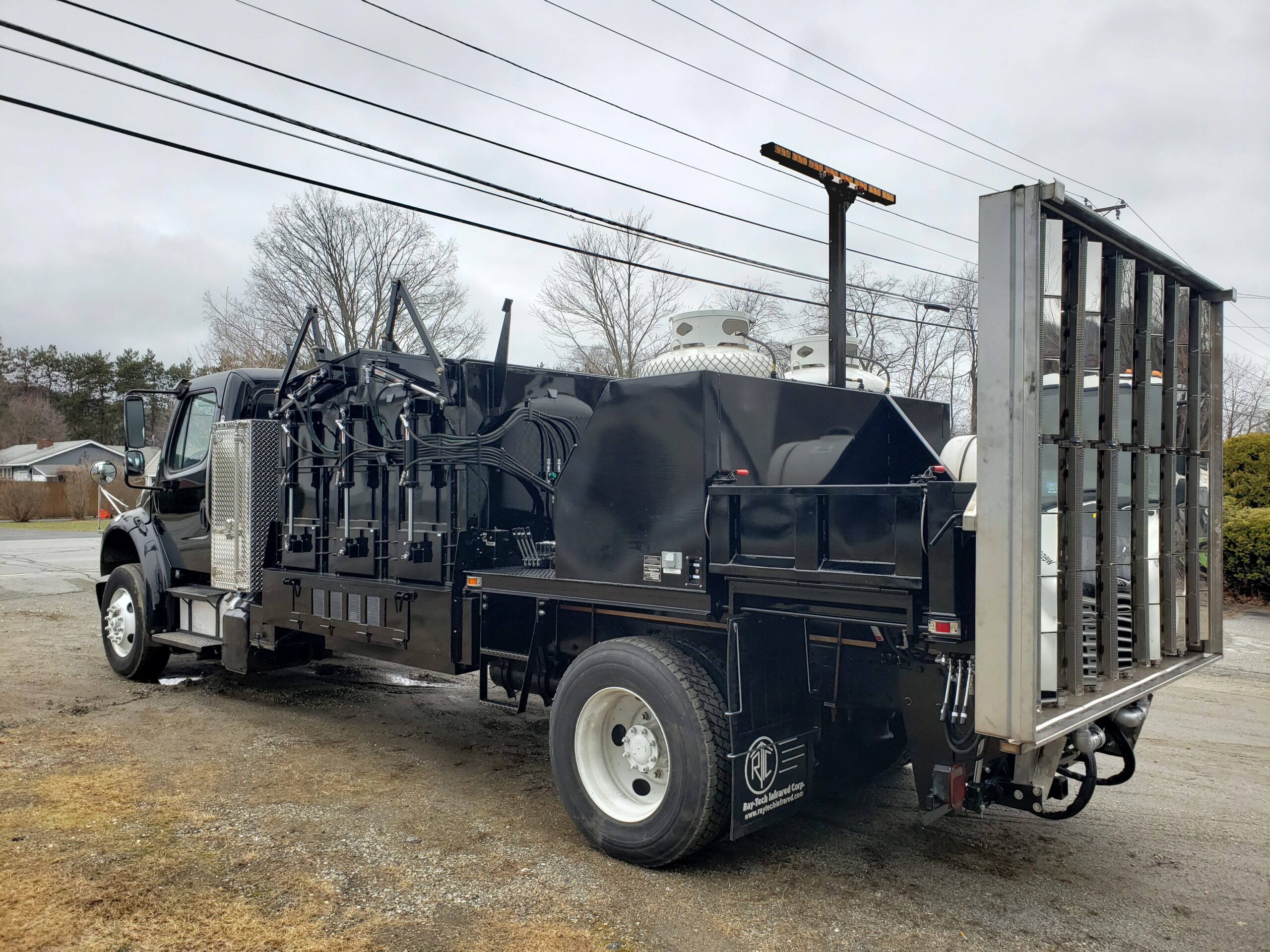

The Ray-Tech TMV 6 is the largest of our line of truck mounted combos. It consists of a 6 ton reclaimer and a 6’L x 8’W heating chamber.
The TMV 6 features a 6’L x 8’W infrared heating chamber mounted on the rear of a customer supplied truck chassis and a 6 ton reclaimer mounted behind the truck cab. Our TMV models are completely self-contained and are a great addition for any size company.
- Basics Package – Time Delay System (TDS) / LED Work Lights / LED Arrow Board / Backup Camera.
- Pro Package – Tool Tray / Wind Guards / Water Tank.
- Truck Upgrade Package – Trailer Hitch / Cross Cab Toolbox.
- Hydraulics Package – Fully Hydraulic Operation For: Top Doors / Discharge Doors / Chamber Lift / Side Dump.
- Roller – Single Drum Walk Behind Vibratory Roller (Bomag BW55E).
- Color – Custom color (Standard is Ray-Tech Safety Lime Green & Black).
- Two 24V brushless blower motors.
- Easy manual ignition with a customer supplied hand held torch.
- Completely stainless steel heating chamber.
- Heavy duty electric winch to raise and lower chamber.
- Ray-Tech unique heating converters for fastest and most efficient heating.
- Five 100 lb propane cylinders on deck (under CDL HAZMAT certification threshold)
- 6 ton reclaimer.
- Two hydraulically operated top loading doors on reclaimer.
- Six hydraulically operated shovel doors; three on each side of reclaimer.
- Battery system and backup charging system on deck.
- 12V to 24V power converter to charge batteries off truck when running.
- Roller or compactor compartment on deck with heavy duty winch on swivel boom.
- Side dump waste bin with winch.
Ray-Tech Standard TMV 6 Equipment Only
(Back of Cab to End of Equipment – Truck cab not included)
- Length: 18’ 2″
- Width: 8′ 0″
- Height: 8′ 5″
- Chamber Length: 6’L
- Chamber Width: 8’W
- Weight (Empty): 9,000 lbs
- Weight (w/ Asphalt, Propane, Tools): 22,000 lbs
Please keep in mind these dimensions may vary with options or truck chassis obstructions.
