Trailer Mounted Heaters

Tech 20

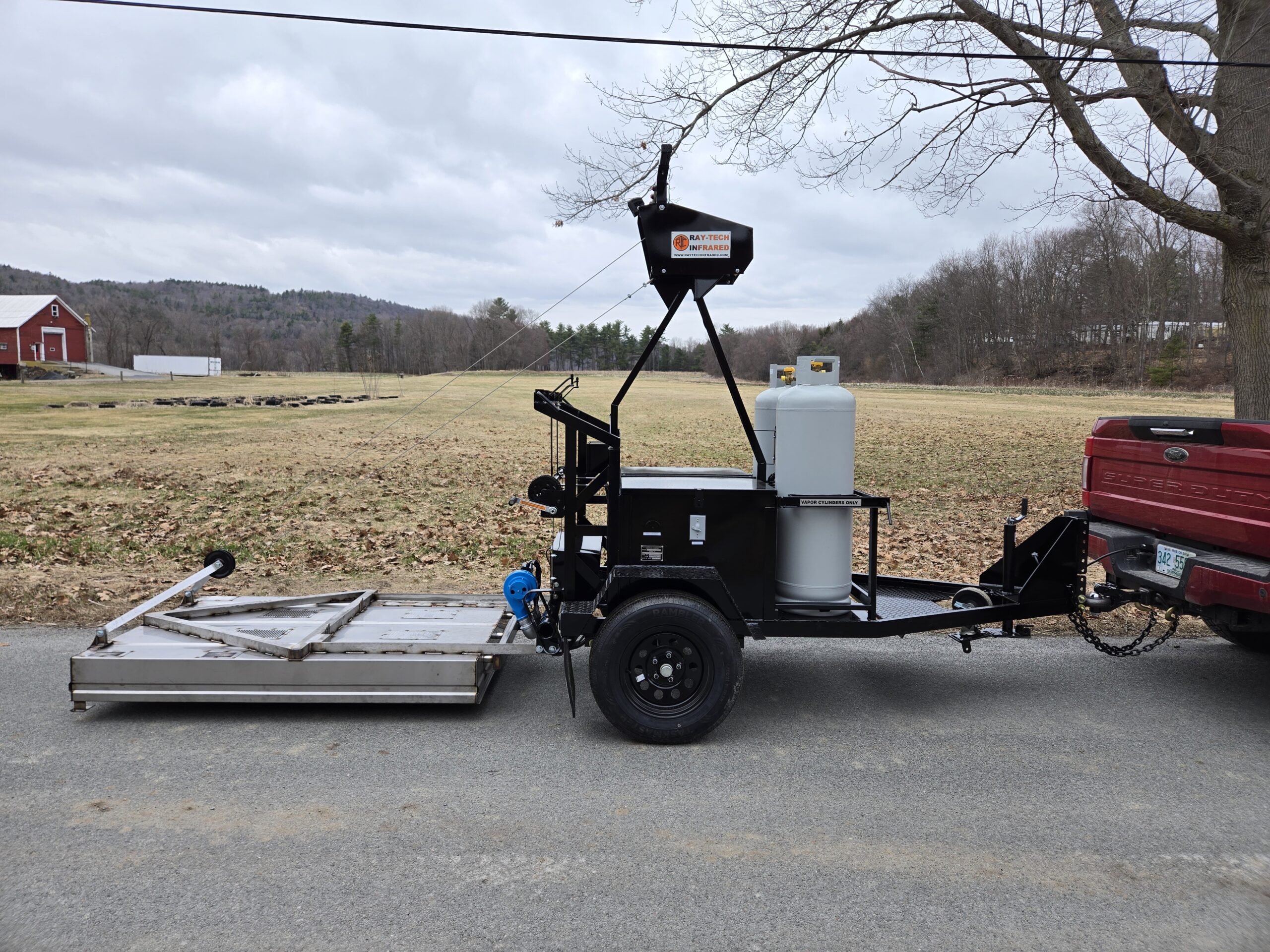

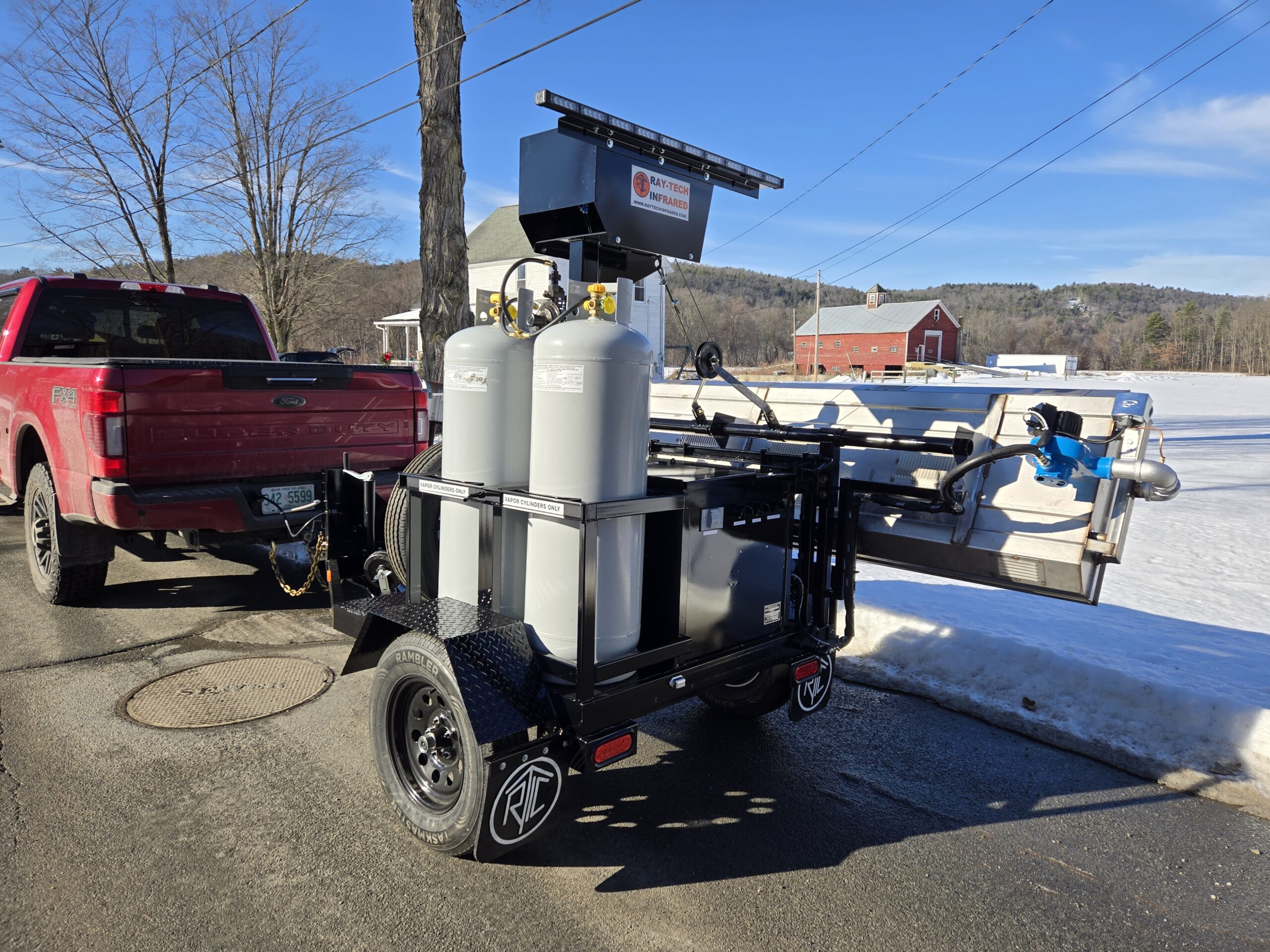

The Ray-Tech Tech 20 features a 4’W x 5 ½’L heating chamber mounted on the rear of a single axle trailer.

The Tech 20 features a 5 ½’L x 4’W heater with one single 24V blower motor mounted on a single axle trailer. This machine is the perfect size for driveways, parking lots and potholes.

  • 12V Led Work Light – 12V LED work light mounted above heating chamber to extend working hours.
  • LED Arrow Stik Light Bar – LED light bar with control module showing flash pattern being used.
  • Aluminum Wind Guards – Set of wind guards to protect against wind or burning of nearby grass, plantings, vehicles, buildings, etc.
  • One 24V blower motor.
  • Battery box for 24V power system with batteries, chargers and all controls.
  • Completely stainless steel heating chamber.
  • Heavy duty Ray-Tech built electric winch to raise and lower chamber.
  • Ray-Tech unique heating converters for fastest and most efficient heating.
  • Two 100 lb propane cylinders.
  • Heavy duty frame.
  • LED trailer lighting throughout.
  • Single 2,000 lb axle.
  • Single front swivel caster wheel for added maneuverability.
  • Easy lighting by turning on the blower motor and touching a torch to the converters.
  • Length: 8’ 4″
  • Width: 5’ 8″
  • Height: 8’ 0”
  • Chamber Length: 5’ 6”
  • Chamber Width: 4’
  • Weight (Empty): 1200 lbs
  • Weight (w/ Propane): 1400 lbs

Tech 36

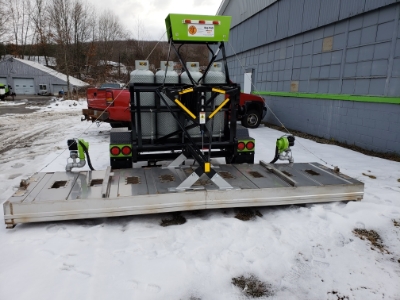

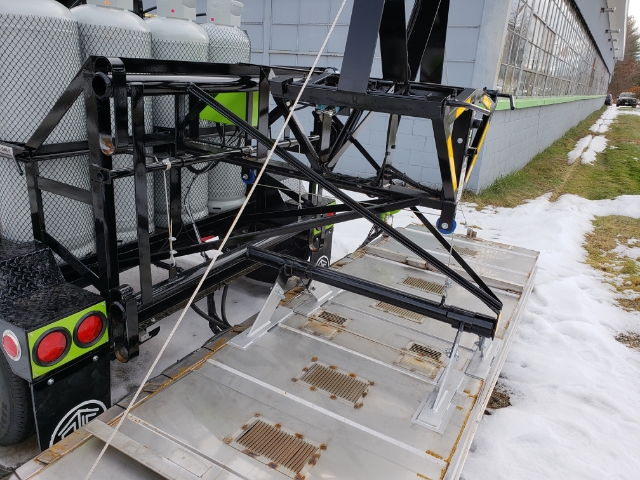

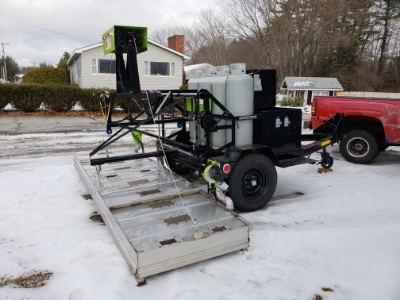

The Ray-Tech Tech 36 features a 3’L x 13’L bi-fold heating chamber mounted on the rear of a single axle trailer.

The Tech 36 features a 3’L x 13’W bi-fold heater with two 24V blower motors mounted on a single axle trailer. This machine is ideal for utility work or any application that requires heating across a full lane of a road.

  • 12V Led Work Light – 12V LED work light mounted above heating chamber to extend working hours.
  • LED Arrow Stik Light Bar – LED light bar with control module showing flash pattern being used.
  • Aluminum Wind Guards – Set of wind guards to protect against wind or burning of nearby grass, plantings, vehicles, buildings, etc.
  • Two 24V blower motors.
  • Battery box for 24V power system with batteries, chargers and all controls.
  • Completely stainless steel heating chamber.
  • Heavy duty Ray-Tech built electric winch to raise and lower chamber.
  • Ray-Tech unique heating converters for fastest and most efficient heating.
  • Four 100 lb propane cylinders.
  • Heavy duty frame.
  • LED trailer lighting throughout.
  • Single 6,000 lb axle.
  • Single front swivel caster wheel for added maneuverability.
  • Easy lighting by turning on the blower motor and touching a torch to the converters.
  • Length: 15’ 6″
  • Width: 7’ 4″
  • Height: 7’ 10”
  • Chamber Length: 3’ 4”
  • Chamber Width: 13’
  • Weight (Empty): 3,000 lbs
  • Weight (w/ Propane): 4,000 lbs

Tech 48

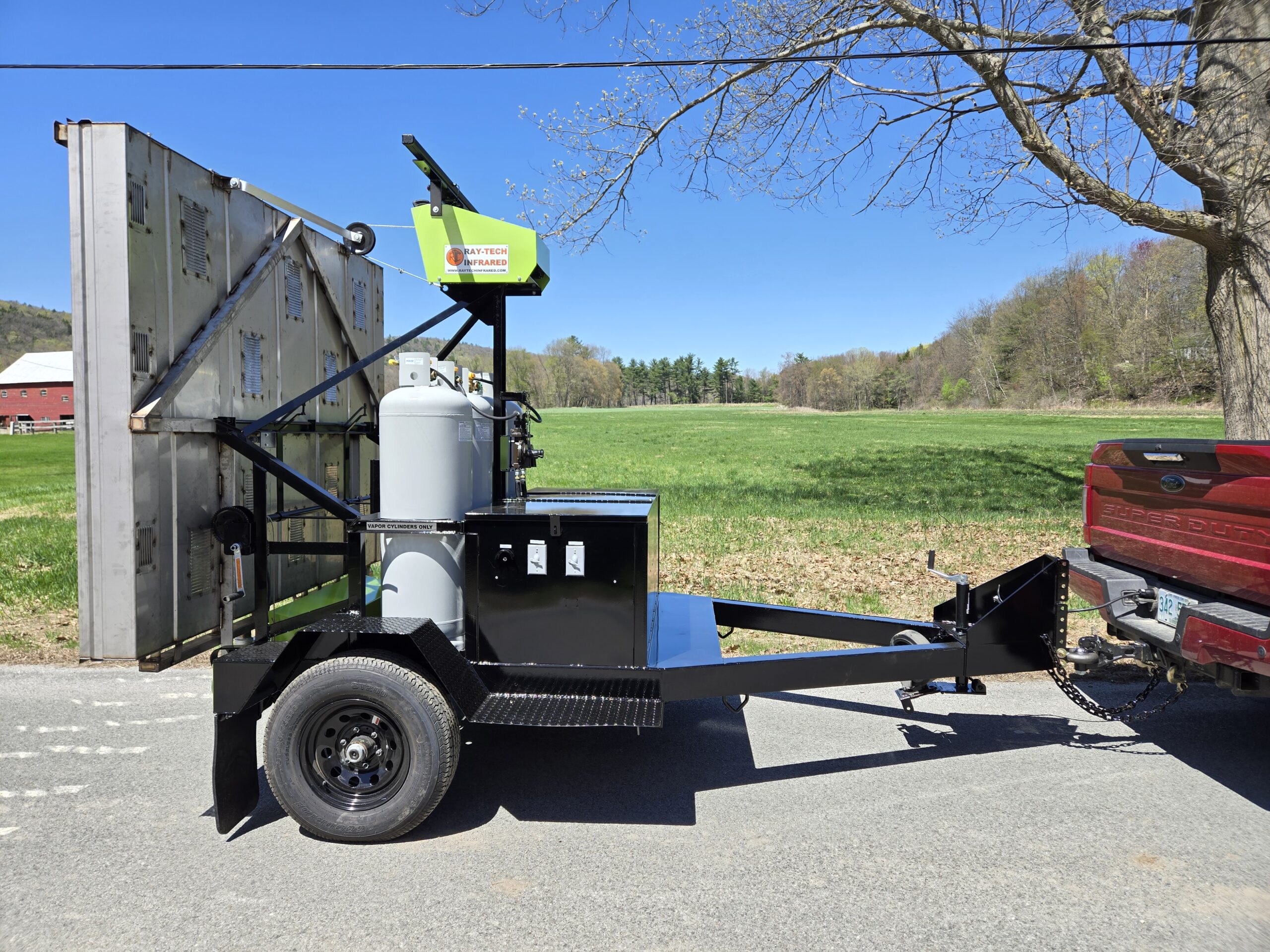

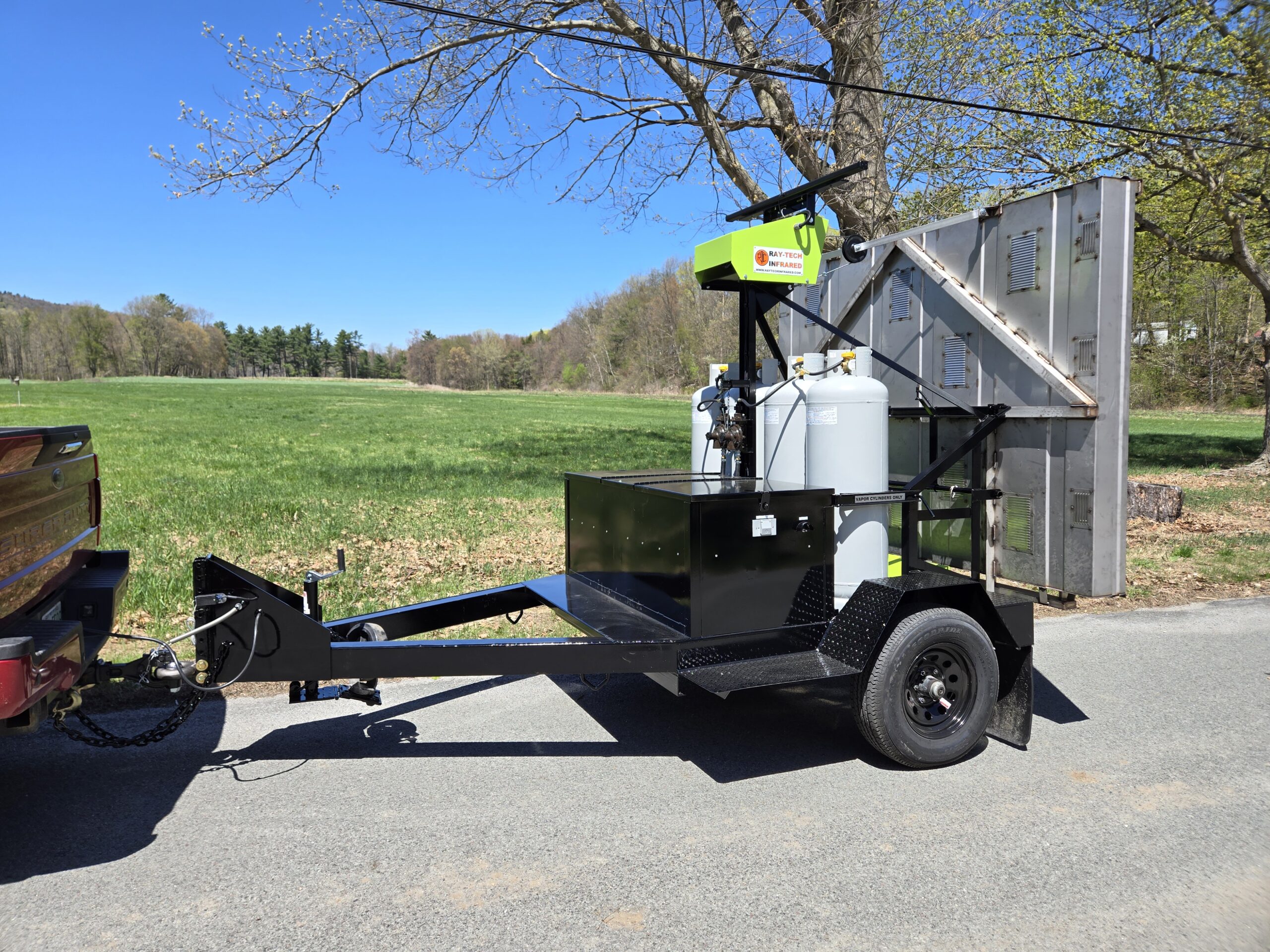

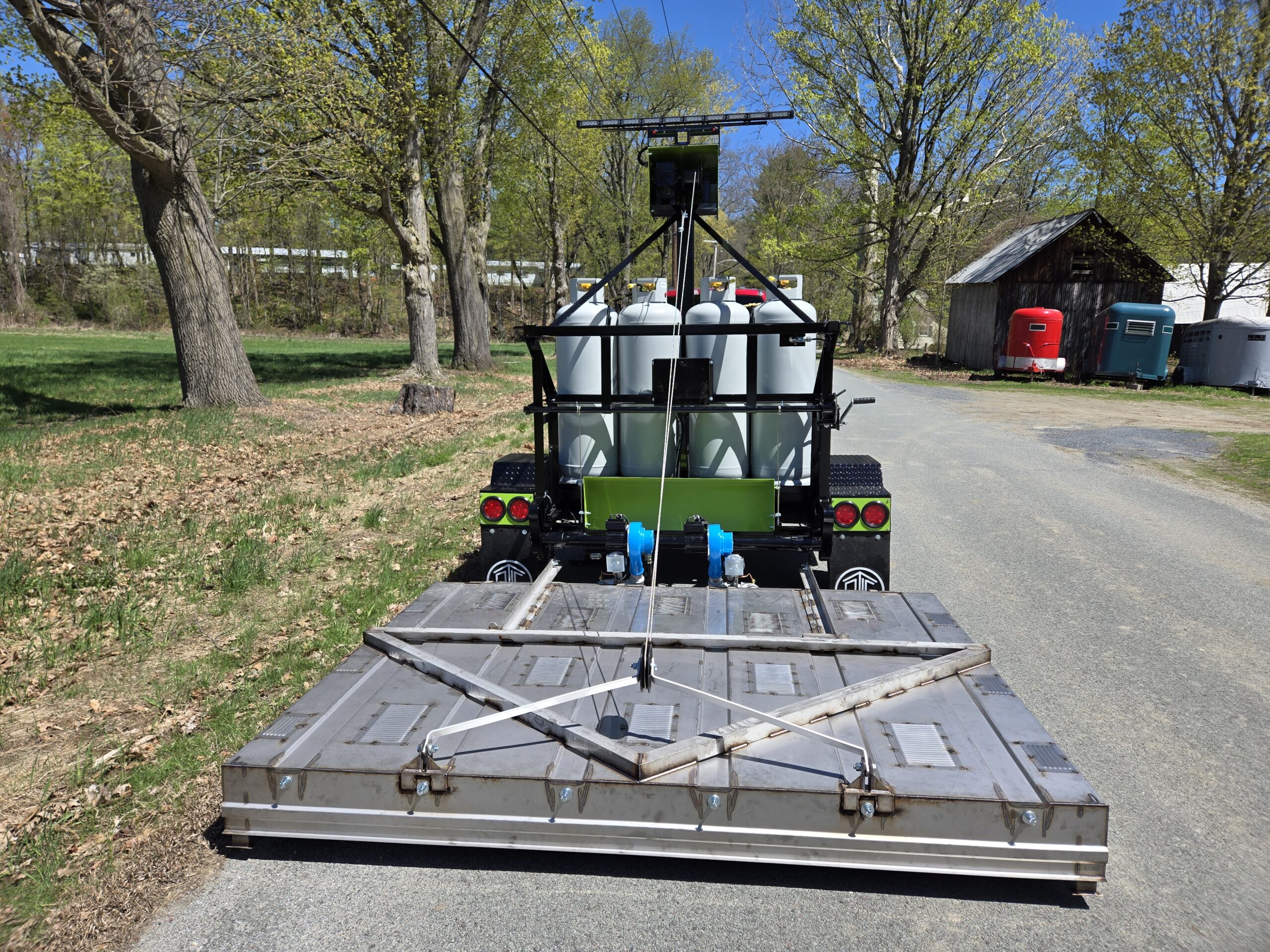

The Ray-Tech Tech 48 features a 6’L x 8’W heating chamber mounted on the rear of a single axle trailer.

The Tech 48 features our largest heating chamber at 6’L x 8’W with two 24V blower motors. It is mounted on a single axle trailer. This machine is great for virtually any size repair or touch-up job.

  • 12V Led Work Light – 12V LED work light mounted above heating chamber to extend working hours.
  • LED Arrow Stik Light Bar – LED light bar with control module showing flash pattern being used.
  • Aluminum Wind Guards – Set of wind guards to protect against wind or burning of nearby grass, plantings, vehicles, buildings, etc.
  • Two 24V blower motors.
  • Battery box for 24V power system with batteries, chargers and all controls.
  • Completely stainless steel heating chamber.
  • Heavy duty Ray-Tech built electric winch to raise and lower chamber.
  • Ray-Tech unique heating converters for fastest and most efficient heating.
  • Four 100 lb propane cylinders.
  • Heavy duty frame.
  • LED trailer lighting throughout.
  • Single 6,000 lb axle.
  • Single front swivel caster wheel for added maneuverability.
  • Easy lighting by turning on the blower motor and touching a torch to the converters.
  • Length: 12’ 6″
  • Width: 8’ 0″
  • Height: 8’ 7”
  • Chamber Length: 6’
  • Chamber Width: 8’
  • Weight (Empty): 3,000 lbs
  • Weight (w/ Propane): 4,000 lbs

Tech 108

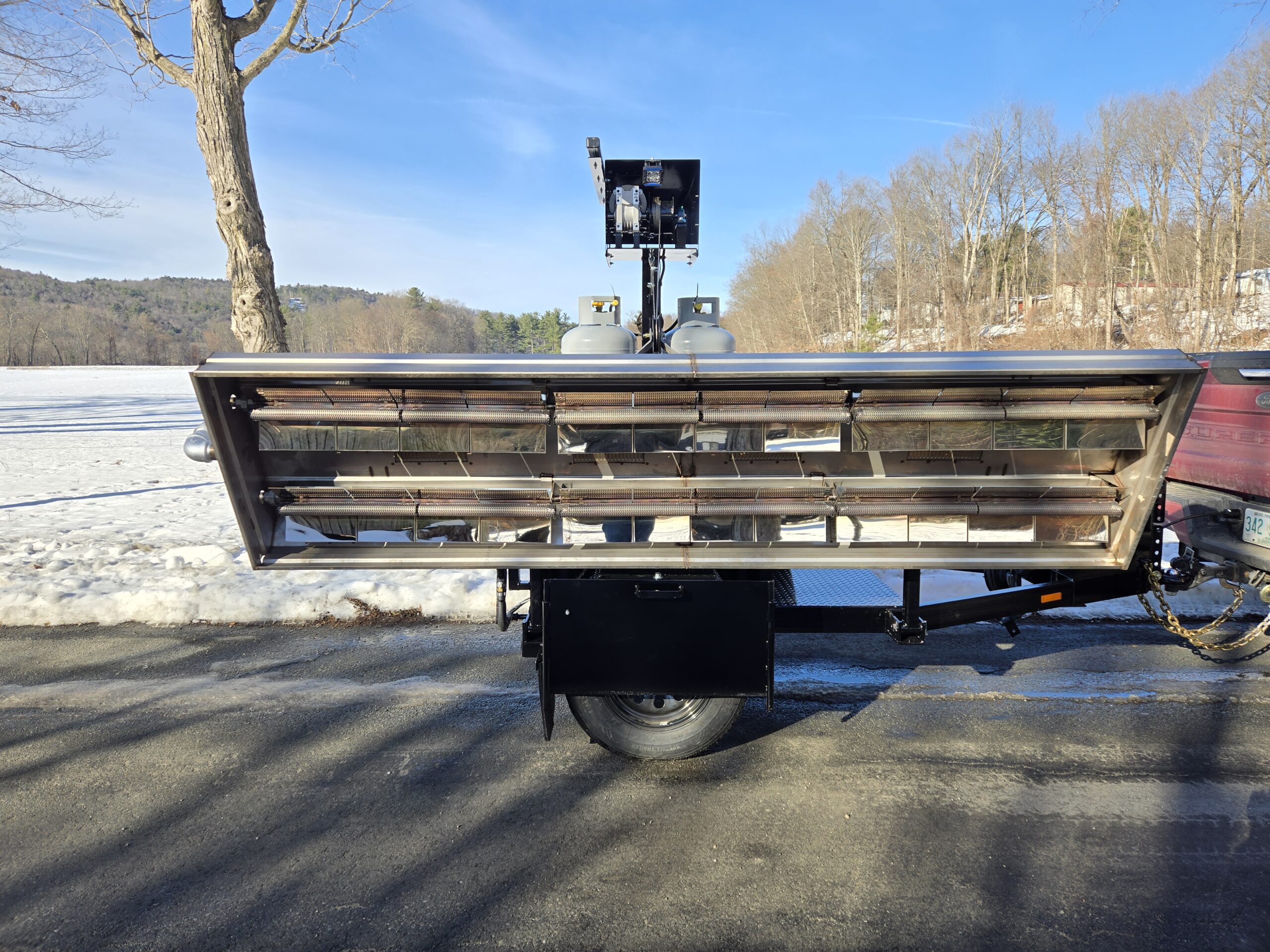

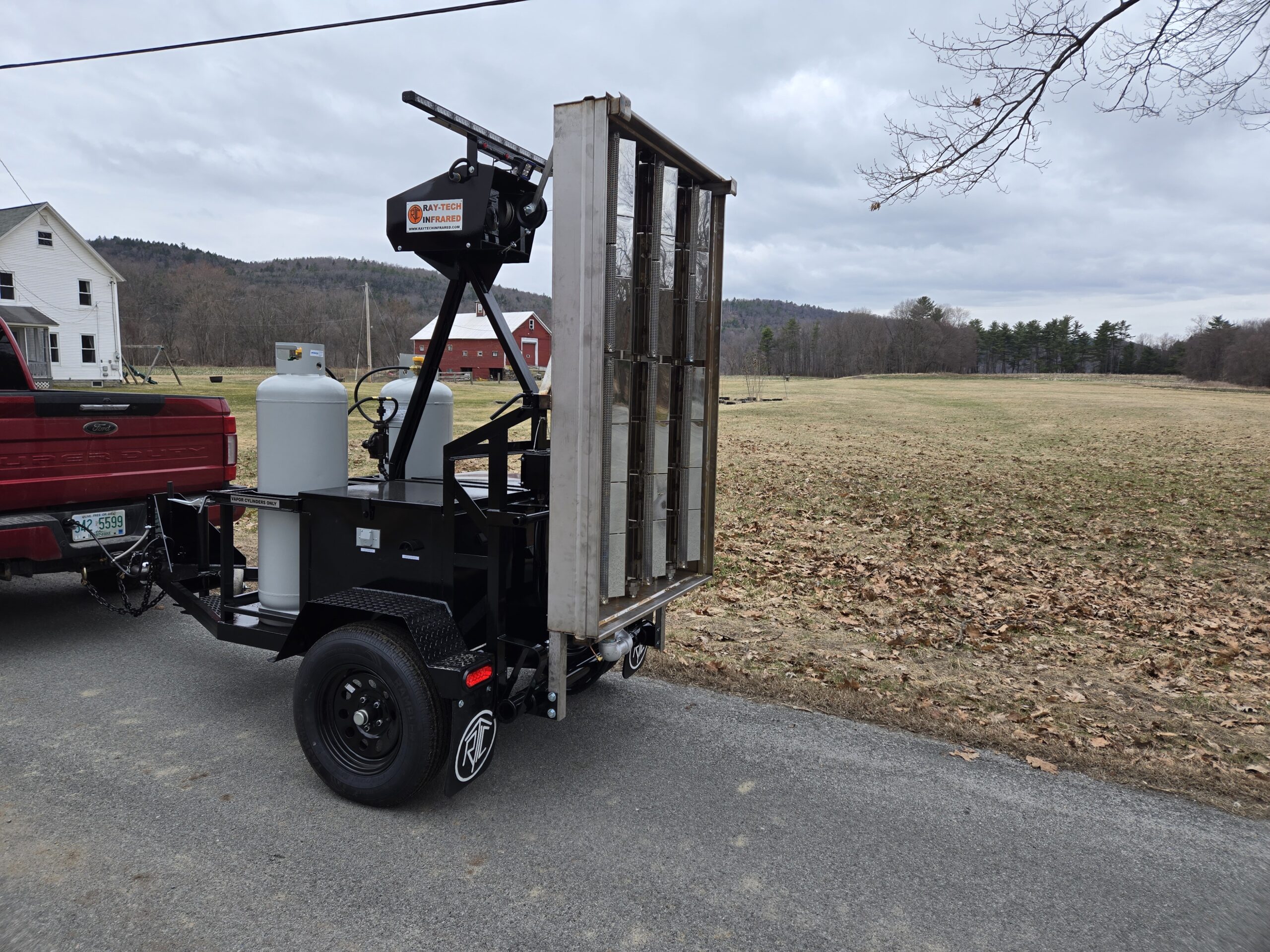

The Ray-Tech Tech 108 features a 9’L x 30″W heating chamber mounted on the side of a single axle trailer.

The Tech 108 features a 9’L x 30″W heater with one 24V blower motor mounted on a single axle trailer. This machine was designed with trench heating and some joint or seam work in mind.

  • 12V Led Work Light – 12V LED work light mounted above heating chamber to extend working hours.
  • LED Arrow Stik Light Bar – LED light bar with control module showing flash pattern being used.
  • Aluminum Wind Guards – Set of wind guards to protect against wind or burning of nearby grass, plantings, vehicles, buildings, etc.
  • One 24V blower motor.
  • Battery box for 24V power system with batteries, chargers and all controls.
  • Completely stainless steel heating chamber.
  • Heavy duty Ray-Tech built electric winch to raise and lower chamber.
  • Ray-Tech unique heating converters for fastest and most efficient heating.
  • Two 100 lb propane cylinders.
  • Heavy duty frame.
  • LED trailer lighting throughout.
  • Single 2,000 lb axle.
  • Single front swivel caster wheel for added maneuverability.
  • Easy lighting by turning on the blower motor and touching a torch to the converters.
  • Length: 13’ 2″
  • Width: 7’ 3″
  • Height: 7’ 4”
  • Chamber Length: 9’ 0”
  • Chamber Width: 30″
  • Weight (Empty): 1,600 lbs
  • Weight (w/ Propane): 1,800 lbs
